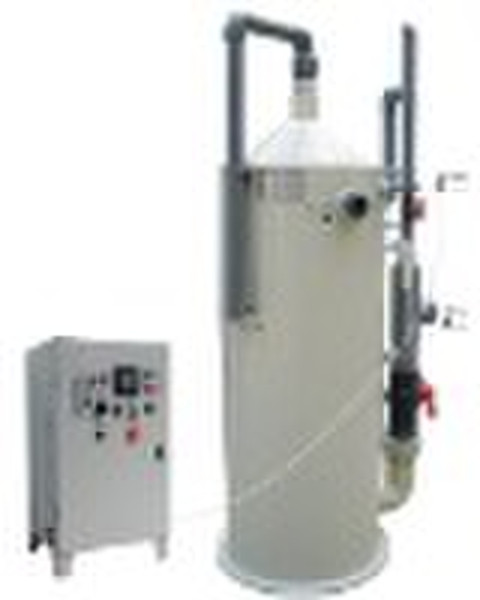

ozone generator with protein skimmer for aquacultu

SystemAppliance :Fresh water & Seafood cultivating factoryFresh water & Seawater hatcheriesOceanopolis, aquarium ,aquaculture ,fishing farm etcSwimming pool water treatmentSewage water treatmentDomestic watet treatmentFeatures of CH-WZQOzone generator Series:1. Steel Spray chassis2. Installed with CH-PC10-50g/hr enamel ozone generator tube, Water cooled for internal &external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration.3. Adjustable ozone output, Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.4. Feed external oxygen source (oxygen cylinder, oxygen concentrator, liquid oxygen storage)5. High ozone concentration is more 90mg/L6. Easy to maintain and assemble7. Control Panel: Gas flow meter ,Voltage meter ,Current meter ,Work instruction ,Power indication ,On/Off ,Ozone output adjuster ,Pressure regulator ,Trouble alarm, Emergency stop device .Specifications ofCH-WZQItemUnitCH-WZQ 50GCH-WZQ 30GCH-WZQ 20GCH-WZQ 10GFlow rate of oxygen supplyL/Min6-153-63-101-4Ozone concentrationMg/L115-65120-94104-51100-66Ozone outputg/hr41.40-58.5021.6-33.8418.72-30.606-15.80PowerKW0.50.50.30.13FrequencyKHZ5566High voltage outputVPP3600VPower amplificationA/VIGBT 50A/600VWay of coolingWater cooled for internal & external electrodesCooling water flow rateL/Min6544Cooling water temperature°C30Adjustable (Variable control)%0-100Power supplyV/HZ220v/110v 50/60HZDimensionmm460*385*840Features of Protein skimmer :Instead the using of Venturi, Booster pump, low power for saving energy.Using the collecting pipe, no need to clean, for saving water.PDO air intake device produces abundance air bubble, for high separate efficiency.Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.Trouble-free design, long service life but free maintenance. Functions of Protein skimmer:Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.Removing the harmful air in water, stabilize the PH in water.Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.Specifications of Protein skimmer:ModelWater flow rateSizeCH-FPS-1010 M3/HrDiameter450×H1550 mmCH- FPS -1515 M3/HrDiameter520×H1800mmCH- FPS -2020 M3/HrDiameter620×1800 mmCH- FPS -3030 M3/HrDiameter700×H2100 mmCH- FPS -4040 M3/HrDiameter700×H2400 mmCH FPS -6060 M3/HrDiameter850×H2400 mmCH- FPS -8080 M3/HrDiameter920×H3000 mmCH- FPS -100100 M3/HrDiameter1050×H3000 mmCH- FPS -150150 M3/HrDiameter1250×H3100 mmCH- FPS -160160 M3/HrDiameter1300×H3100 mmCH- FPS -200200 M3/HrDiameter1350×H3500 mm
